Custom Steel Fabrication

Fabrication Services

V Cross Arms, DPT Structures & Electrical Line Hardware

Overview

Fabricated to Your Drawings

Besides fencing, we fabricate steel structures to your drawings, including V cross arms and DPT (double-pole transformer) structures for overhead power lines. We work from MS angles, channels, flats and plates, cutting, punching, bending, welding and finishing each piece, and hot-dip galvanize it for long outdoor life. Send us your drawing, section sizes and quantity for a quote.

Galvanized DPT structures with cross arms and insulators

What We Fabricate

Item	What it is
V cross arm	V-shaped cross arm that carries insulators on 11, 22 and 33 kV overhead lines, supplied with clamps
DPT (double-pole transformer) structure	Two-pole structure that carries a pole-mounted distribution transformer, in rectangular or square layouts for 11, 22 and 33 kV
Transformer base (bed) structure	Channel framework that supports the transformer on the poles
Pin cross arms	Two-pin and four-pin cross arms with clamps
Guarding channels and angles	Protective guarding for 11, 22 and 33 kV lines
CT, PT, lightning arrester and horn-gap structures	Mounting structures for current transformers, potential transformers, lightning arresters and horn gaps
Cut-point channels	Channel pairs for cut-points on 11, 22 and 33 kV lines
Clamps and brackets	Pole clamps, cross-arm clamps, pole brackets and cable tray brackets

Our Process

STEP 01

Cutting

Angles, channels and flats cut to size.

STEP 02

Punching

Holes punched on a power press.

STEP 03

Bending

Sections bent to the drawing.

STEP 04

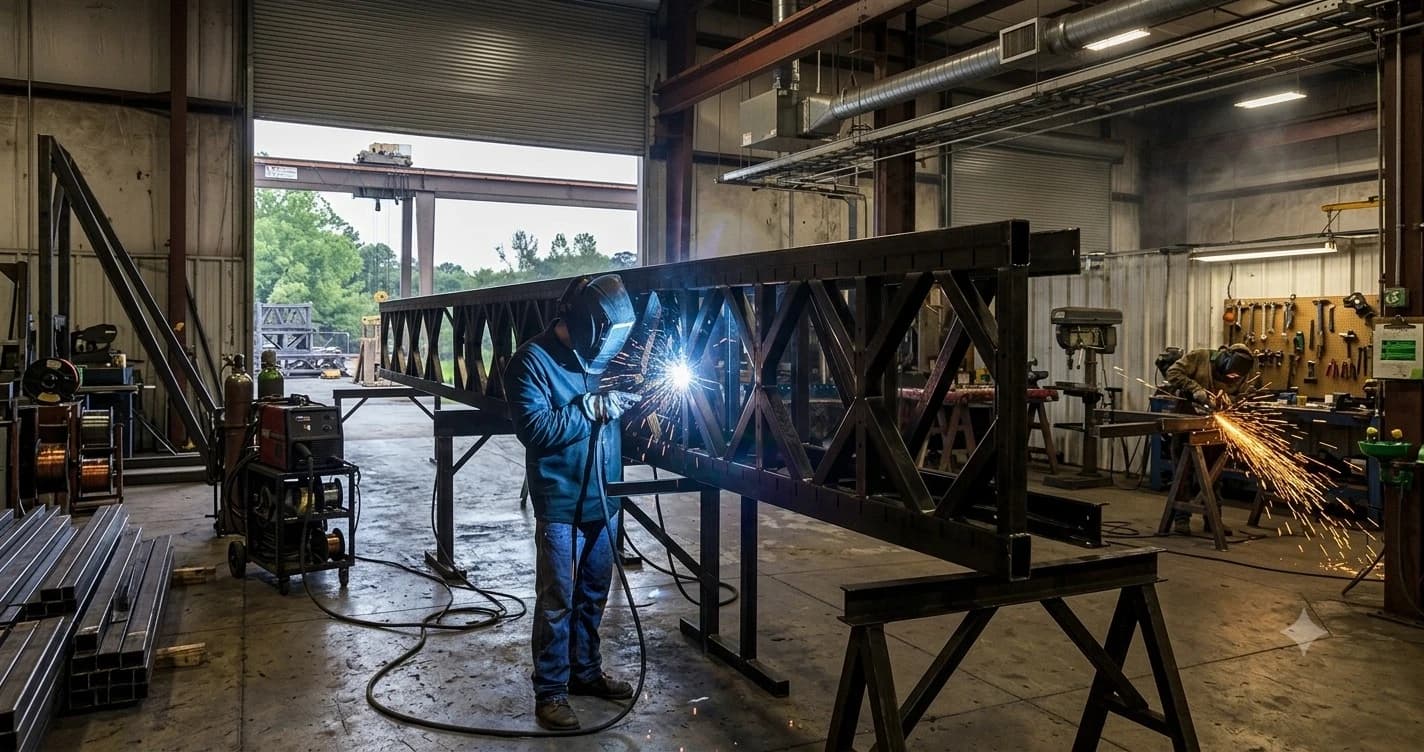

Welding

Joints welded and assembled.

STEP 05

Finishing

Grinding and cleaning of welds and edges.

STEP 06

Galvanizing

Hot-dip galvanizing, or painting where specified.

Specifications

Parameter	Details
Sections	MS angles (for example 50 x 50 x 6 and 65 x 65 x 6 mm), channels (for example 75 x 40 x 6 and 100 x 50 x 6 mm), flats and plates
Steel grade	IS 2062
Finish	Hot-dip galvanized (GI) or painted
Galvanizing standard	IS 4759
Made to	Customer or utility drawings
